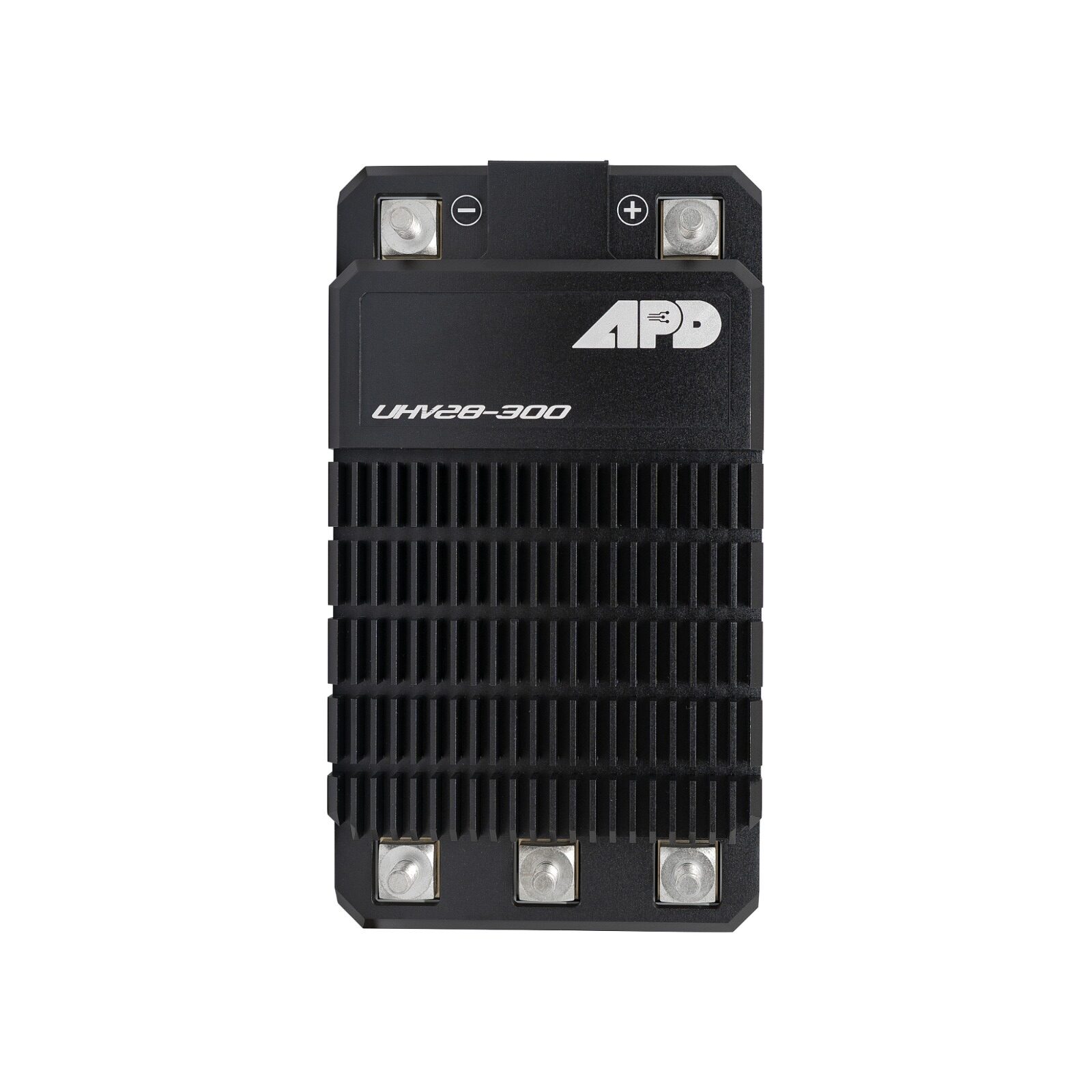

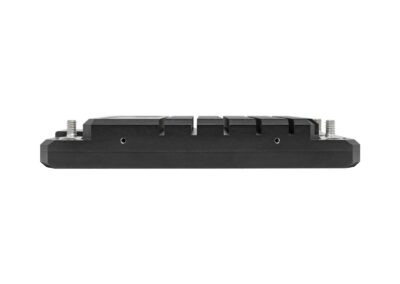

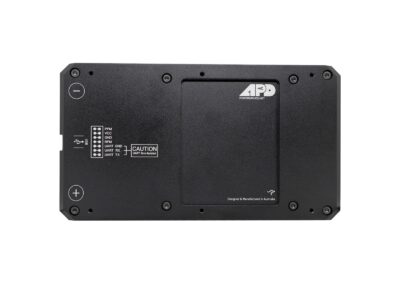

APD UHV 28S BRUSHLESS ESC
120V / 300 Amps
![UHV281500](https://neumotors.com/wp-content/uploads/2024/04/UHV281500.jpg)
![](https://neumotors.com/wp-content/uploads/2020/09/UHV-dimensions01.png)
$2,499.00
APD UHV 28S BRUSHLESS ESC SPECIFICATIONS:
APD UHV 28S | ||||
Peak power rating (kW) | 45 | Weight (No cables) (g) | 1069 | |
Continuous current (A) | 300 | Dimensions (mm) | 180 x 100 x 28 | |
Continuous rating duration (s) | cooling dependent | Input signal PWM frequency | Up to 500Hz | |
Burst current (A) | 400 | Input PWM frequency pulse width (ms) | 1000μs to 2000μs (Adjustable) | |
Burst rating duration (s) | 10 | Motor de-sync protection | YES | |
Max voltage (V) | 120 | Auto Motor PWM-Freq | YES | |
Max no. of LiPo cells | 28S | Regenerative braking | YES | |
Min voltage (V) | 15 | Max regen current (A) | 20 (10% max set current) | |
Min No. of LiPo cells | 5S | Max regen voltage | 110% Power on Voltage | |
Max ERPM | 1,000,000 | Auto Timing Advance | YES | |
Resistance (Ohms) | .00091 | Stall Protection | YES | |
Input resolution | 12 bit (0.02%) | Configurator Tool | YES | |
Max operating Temperature (⁰C) (50% current limit start point) | 115 | Data Logging (Black Box) | YES | |
Recommended airflow to achieve max power ratings (m/s) | not necessary with fan | Bi-Directional Control | YES | |
Decoupling capacitor | internal | Micro USB Firmware Flashing | YES |
MODES
Normal mode: Incremental + Linear power ramp control
Used with:
Fixed wing aircraft
Watercraft
Paragliders
Multi-Rotor: Instantaneous Input = Output Step Response
Used with:
Drones
Flying Cars
Heli: Soft-start for drive-train protection
Used with: Helicopters
Traction: Same as normal except for active torque control, which applies a motor phase current limit that ramps proportionally with higher motor duty-cycles
Used with: Electric bikes
Reverse: Normal mode with reverse capabilities
Used with: Watercraft requiring reverse
MULTIROTOR SPECIALISTS
-
- Auto-detect ProShot or Dshot any frequency range
- ProShot1000 capable (1Mbs/s)
- Dshot300 to Dshot1200 capable (0.3-1.2Mbs/s)
![](https://neumotors.com/wp-content/uploads/2020/01/PDShot-768x133-2.png)
APD CONFIGURATOR
![](https://neumotors.com/wp-content/uploads/2020/02/WD_HV_Pro-Wiring-Diagram.png)
HIGHEST QUALITY AND EFFICIENCY
Designed and manufactured in Australia using the highest quality components. APD uses aerospace grade ceramic capacitors for the lowest possible ESR and maximum reliability.
PWM-frequency dithering to avoid PWM-commutation synchronisation.
Adaptive motor timing advance and proprietary developed Active Phase-Current Demagnetisation (APCD). APCD along with synchronous rectification ensures maximum ESC efficiency.
Peak power ratings defined at 100% throttle, where bus current = phase current. Requires proper sizing of motor to load.
(*) Continuous amps defined as amperage sustainable for 180 seconds with adequate cooling to keep ESC at or below 115C
(**) Burst amps defined as amperage sustainable without damage to controller for a period of 5 (five) seconds. Burst should not be encountered again until ESC has returned to normal temperature
(***) Weight refers solely to the circuit board and enclosure, if any. Weight measured without any wires or connectors.
Specifications subject to change without notice.
