6500 SERIES BLDC MOTORS

65XX SERIES MOTORS QUICK LOOK:

  • 77mm OD
  • Outrunner construction
  • up to 14,000W
  • 12,000 RPM max
  • 22 poles / 24 slots
  • 8mm shaft

OPTIONS:

Modular shaft design facilitates multiple mounting options and easy customization for specific applications.

US component sourcing and assembly available.



65xx brushless outrunner motor

65XX SERIES LENGTHS AND POWER RANGES

Neumotors 65xx series brushless motors are manufactured in a wide variety of lengths and winds to provide increasing power ratings at a number of voltages. Select the desired motor Kv (RPMs per volt) and power range from the table below.

LENGTH
Continuous
Watts*
Max
Watts*
Physical
Length
Weight
3,000
6,000
53mm
579g
3,500
7,000
62mm
743g
4,000
8,000
74mm
969g
7,000
14,000
82mm
1,305g

6521: 3,000 – 6,000 watt brushless motors

Price: $246.00 each.  Volume discount available.

Motor RPMs
per Volt
(KV)
Rm (Ohms) Io
@
10V
Torque
Constant
(mNm/A)
Torque
Constant
(inOz/A)
Max
Volts
Max
Amps
6521/95/13 13 7.40 0.05 736.031 104.231 923 8
6521/80/16 16 5.26 0.06 598.025 84.688 750 9
6521/60/21 21 2.97 0.08 455.638 64.524 571 12
6521/50/25 25 2.07 0.10 382.736 54.2 480 14
6521/45/28 28 1.68 0.11 341.729 48.393 429 16
6521/40/32 32 1.33 0.12 299.013 42.344 375 18
6521/36/35 35 1.08 0.14 273.383 38.714 343 20
6521/32/40 40 0.86 0.15 239.21 33.875 300 22
6521/28/45 45 0.66 0.18 212.631 30.111 267 26
6521/26/49 49 0.57 0.19 195.274 27.653 245 28
6521/24/53 53 0.49 0.20 180.536 25.566 226 30
6521/22/58 58 0.41 0.22 164.972 23.362 207 33
6521/20/63 63 0.34 0.25 151.879 21.508 190 36
6521/19/67 67 0.31 0.26 142.812 20.224 179 38
6521/18/70 70 0.28 0.27 136.691 19.357 171 40
6521/17/74 74 0.25 0.29 129.303 18.311 162 42
6521/16/79 79 0.22 0.31 121.119 17.152 152 45
6521/15/84 84 0.19 0.33 113.91 16.131 143 48
6521/14/90 90 0.17 0.35 106.316 15.056 133 51
6521/13/97 97 0.15 0.38 98.643 13.969 124 55
6521/12/105 105 0.13 0.41 91.128 12.905 114 60
6521/11/115 115 0.11 0.45 83.204 11.783 104 65
6521/10/127 127 0.09 0.49 75.342 10.669 94 72
6521/9.5/133 133 0.08 0.52 71.943 10.188 90 76
6521/9/141 141 0.07 0.54 67.861 9.61 85 80
6521/8.5/149 149 0.07 0.58 64.217 9.094 81 85
6521/8/158 158 0.06 0.61 60.56 8.576 76 90
6521/7.5/169 169 0.05 0.65 56.618 8.018 71 96
6521/7/181 181 0.05 0.70 52.864 7.486 66 103
6521/6.5/195 195 0.04 0.75 49.069 6.949 62 111
6521/6/211 211 0.03 0.82 45.348 6.422 57 120
6521/5.5/230 230 0.03 0.89 41.602 5.891 52 131
6521/5/253 253 0.02 0.98 37.82 5.356 47 144
6521/4.5/281 281 0.02 1.09 34.051 4.822 43 160
6521/4/316 316 0.02 1.23 30.28 4.288 38 180
6521/3.5/362 362 0.01 1.40 26.432 3.743 33 206
6521/3/422 422 0.01 1.63 22.674 3.211 28 240

6530: 3,500 – 7,000 watt brushless motors

Price: $290.00 each.  Volume discount available.

Motor RPMs
per Volt
(KV)
Rm (Ohms) Io
@
10V
Torque
Constant
(mNm/A)
Torque
Constant
(inOz/A)
Max
Volts
Max
Amps
6530/85/10 10 8.03 0.06 956.84 135.5 1200 8
6530/70/13 13 5.45 0.07 736.031 104.231 923 10
6530/55/16 16 3.38 0.09 598.025 84.688 750 13
6530/45/20 20 2.27 0.11 478.42 67.75 600 16
6530/38/23 23 1.62 0.13 416.018 58.913 522 19
6530/34/26 26 1.30 0.14 368.015 52.115 462 21
6530/30/30 30 1.01 0.16 318.947 45.167 400 24
6530/28/32 32 0.89 0.18 299.013 42.344 375 26
6530/24/37 37 0.65 0.20 258.605 36.622 324 30
6530/22/40 40 0.55 0.22 239.21 33.875 300 33
6530/20/44 44 0.46 0.25 217.464 30.795 273 36
6530/19/47 47 0.41 0.26 203.583 28.83 255 38
6530/18/49 49 0.37 0.27 195.274 27.653 245 40
6530/17/52 52 0.33 0.29 184.008 26.058 231 42
6530/16/55 55 0.29 0.31 173.971 24.636 218 45
6530/15/59 59 0.26 0.33 162.176 22.966 203 48
6530/14/63 63 0.23 0.35 151.879 21.508 190 51
6530/13/68 68 0.20 0.38 140.712 19.926 176 55
6530/12/74 74 0.17 0.41 129.303 18.311 162 60
6530/11/81 81 0.14 0.45 118.128 16.728 148 65
6530/10/89 89 0.12 0.49 107.51 15.225 135 72
6530/9.5/93 93 0.11 0.52 102.886 14.57 129 76
6530/9/98 98 0.10 0.54 97.637 13.827 122 80
6530/8.5/104 104 0.09 0.58 92.004 13.029 115 85
6530/8/111 111 0.08 0.61 86.202 12.207 108 90
6530/7.5/118 118 0.07 0.65 81.088 11.483 102 96
6530/7/127 127 0.06 0.70 75.342 10.669 94 103
6530/6.5/136 136 0.05 0.75 70.356 9.963 88 111
6530/6/148 148 0.04 0.82 64.651 9.155 81 120
6530/5.5/161 161 0.04 0.89 59.431 8.416 75 131
6530/5/177 177 0.03 0.98 54.059 7.655 68 144
6530/4.5/197 197 0.03 1.09 48.571 6.878 61 160
6530/4/221 221 0.02 1.23 43.296 6.131 54 180
6530/3.5/253 253 0.02 1.40 37.82 5.356 47 206
6530/3/295 295 0.01 1.63 32.435 4.593 41 240
6530/2.5/354 354 0.01 1.96 27.029 3.828 34 288
6530/2/443 443 0.01 2.45 21.599 3.059 27 360

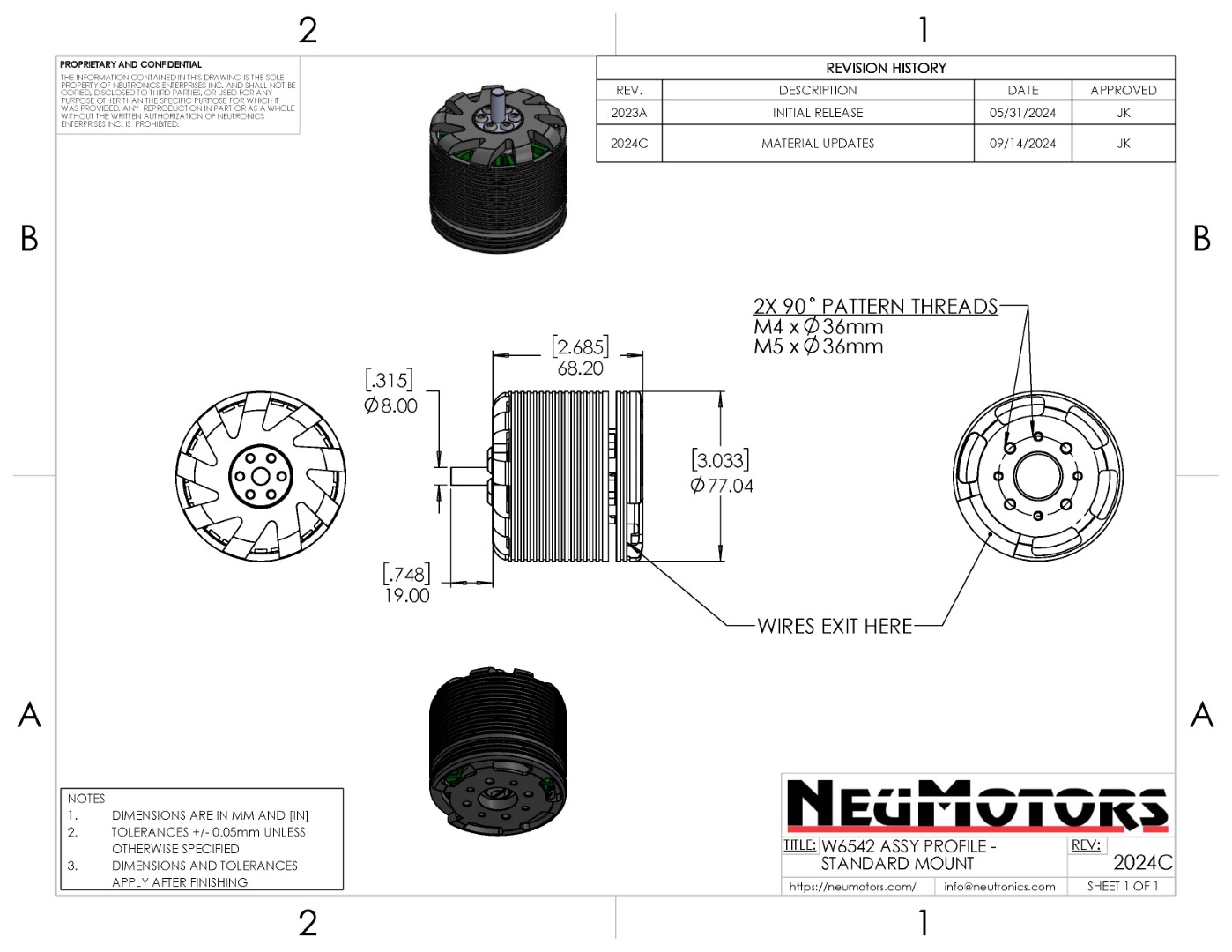

6542: 4,000 – 8,000 watt brushless motors

Price: $350.00 each.  Volume discount available.

Motor RPMs
per Volt
(KV)
Rm (Ohms) Io
@
10V
Torque
Constant
(mNm/A)
Torque
Constant
(inOz/A)
Max
Volts
Max
Amps
6542/100/6 6 14.97 0.05 1594.734 225.833 2000 7
6542/70/9 9 7.35 0.07 1063.156 150.556 1333 10
6542/55/12 12 4.55 0.09 797.367 112.917 1000 13
6542/40/16 16 2.41 0.12 598.025 84.688 750 18
6542/34/19 19 1.75 0.14 503.6 71.316 632 21
6542/28/23 23 1.19 0.18 416.018 58.913 522 26
6542/24/26 26 0.88 0.20 368.015 52.115 462 30
6542/22/29 29 0.74 0.22 329.945 46.724 414 33
6542/20/32 32 0.61 0.25 299.013 42.344 375 36
6542/19/33 33 0.55 0.26 289.952 41.061 364 38
6542/18/35 35 0.50 0.27 273.383 38.714 343 40
6542/17/37 37 0.44 0.29 258.605 36.622 324 42
6542/16/40 40 0.39 0.31 239.21 33.875 300 45
6542/15/42 42 0.35 0.33 227.819 32.262 286 48
6542/14/45 45 0.30 0.35 212.631 30.111 267 51
6542/13/49 49 0.26 0.38 195.274 27.653 245 55
6542/12/53 53 0.22 0.41 180.536 25.566 226 60
6542/11/58 58 0.19 0.45 164.972 23.362 207 65
6542/10/63 63 0.16 0.49 151.879 21.508 190 72
6542/9.5/67 67 0.14 0.52 142.812 20.224 179 76
6542/9/70 70 0.13 0.54 136.691 19.357 171 80
6542/8.5/74 74 0.11 0.58 129.303 18.311 162 85
6542/8/79 79 0.10 0.61 121.119 17.152 152 90
6542/7.5/84 84 0.09 0.65 113.91 16.131 143 96
6542/7/90 90 0.08 0.70 106.316 15.056 133 103
6542/6.5/97 97 0.07 0.75 98.643 13.969 124 111
6542/6/105 105 0.06 0.82 91.128 12.905 114 120
6542/5.5/115 115 0.05 0.89 83.204 11.783 104 131
6542/5/127 127 0.04 0.98 75.342 10.669 94 144
6542/4.5/141 141 0.03 1.09 67.861 9.61 85 160
6542/4/158 158 0.03 1.23 60.56 8.576 76 180
6542/3.5/181 181 0.02 1.40 52.864 7.486 66 206
6542/3/211 211 0.02 1.63 45.348 6.422 57 240
6542/2.5/253 253 0.01 1.96 37.82 5.356 47 288
6542/2/316 316 0.01 2.45 30.28 4.288 38 360
6542/1.5/422 422 0.00 3.27 22.674 3.211 28 480

6560: 7,000 – 14,000 watt brushless motors

Price: $440.00 each.  Volume discount available.

Motor RPMs
per Volt
(KV)
Rm (Ohms) Io
@
10V
Torque
Constant
(mNm/A)
Torque
Constant
(inOz/A)
Max
Volts
Max
Amps
6560/85/5 5 15.02 0.06 1913.681 271 2400 8
6560/50/9 9 5.21 0.10 1063.156 150.556 1333 14
6560/38/12 12 3.02 0.13 797.367 112.917 1000 19
6560/30/15 15 1.88 0.16 637.894 90.333 800 24
6560/24/18 18 1.21 0.20 531.578 75.278 667 30
6560/20/22 22 0.84 0.25 434.927 61.591 545 36
6560/18/25 25 0.68 0.27 382.736 54.2 480 40
6560/15/30 30 0.48 0.33 318.947 45.167 400 48
6560/13/34 34 0.36 0.38 281.424 39.853 353 55
6560/11/40 40 0.26 0.45 239.21 33.875 300 65
6560/10/44 44 0.21 0.49 217.464 30.795 273 72
6560/9.5/47 47 0.19 0.52 203.583 28.83 255 76
6560/9/49 49 0.17 0.54 195.274 27.653 245 80
6560/8.5/52 52 0.16 0.58 184.008 26.058 231 85
6560/8/55 55 0.14 0.61 173.971 24.636 218 90
6560/7.5/59 59 0.12 0.65 162.176 22.966 203 96
6560/7/63 63 0.11 0.70 151.879 21.508 190 103
6560/6.5/68 68 0.09 0.75 140.712 19.926 176 111
6560/6/74 74 0.08 0.82 129.303 18.311 162 120
6560/5.5/81 81 0.07 0.89 118.128 16.728 148 131
6560/5/89 89 0.06 0.98 107.51 15.225 135 144
6560/4.5/98 98 0.05 1.09 97.637 13.827 122 160
6560/4/111 111 0.04 1.23 86.202 12.207 108 180
6560/3.5/127 127 0.03 1.40 75.342 10.669 94 206
6560/3/148 148 0.02 1.63 64.651 9.155 81 240
6560/2.5/177 177 0.02 1.96 54.059 7.655 68 288
6560/2/221 221 0.01 2.45 43.296 6.131 54 360
6560/1.5/295 295 0.01 3.27 32.435 4.593 41 480
6560/1/443 443 0.00 4.90 21.599 3.059 27 720



LEAD TIME

Neutronics assembles motors to order.  Most motors in this series are ready to ship from our San Diego office within 1-2 weeks.  Lead time varies with quantity, customizations, and supply chain considerations.  Rush orders may be available.

Please email us to confirm delivery estimates for your motor needs. info@neutronics.com

MOTOR KV:

The motor sizes and KVs listed above are the most common for this particular motor range. Custom sizes and  KV (RPMs per volt) are usually available.  Please contact us for more details if you don't immediately see the solution you are seeking in the tables above.

KV is the term used in the brushless motor workspace to specify the number of rotations per minute that a motor will turn for each volt applied to the motor/ESC with no load on the motor.

Neutronics specifications are +/- 5%.

For a more complete discussion of KV, please go to our KV FAQ page.

POWER RATINGS (Watts):

  • Continuous rating is the power the motor can deliver while maintaining the external housing temperatures below 100C.
  • MAX power is achieved at max RPMs and voltage, not at a partial throttle or reduced voltage.
  • MAX power rating is the power the motor can deliver beginning with motor at a temp of 20C until it reaches it's limit temperature of 100C.
  • The ratings are therefore dependent on a number of variables including air flow, ambient air temperature, contact cooling etc. Each application will present different variables.

MTBF RATINGS:

When used within the constraints described above, BLDC motors' primary "wear" item(s) are the bearings supporting the shaft. Bearing life is inversely affected by speed, temperature, and radial and axial loads.  While an MTBF figure can be generated, it would be rendered invalid by excursions beyond prescribed temperatures or load limits - such as prop strikes, or side loads.  MTBF must be determined on a case by case basis, and even then, it would be subject to numerous exceptions.

MAX VOLTAGE

Limited by kv (RPMs per volt) times the applied voltage.  Max voltage must be kept below the voltage which will spin the motor over max rpm for the motor series.

MAX AMPERAGE

See power ratings above.

COMPONENT SPECIFICATIONS

  • Winding temperature:  -- 180C
  • Magnet grade: - 180C UH grade
  • Bearings:  Japanese SPB bearings

CONTROLLER SETTINGS: TIMING

  • APD controllers automatically adjust timing for optimum efficiency
  • Recommend low timing for controllers that require configuration

Pole Count vs. Pole Pairs

  • Neumotors lists the number of poles in a motor rotor. Example: N S N S would be a four pole motor.
  • Some ESC manufacturers use the term "pole pairs" which refers to the number of N and S pairs.  Example: N S N S would be a 2 pole pair motor.  Â
