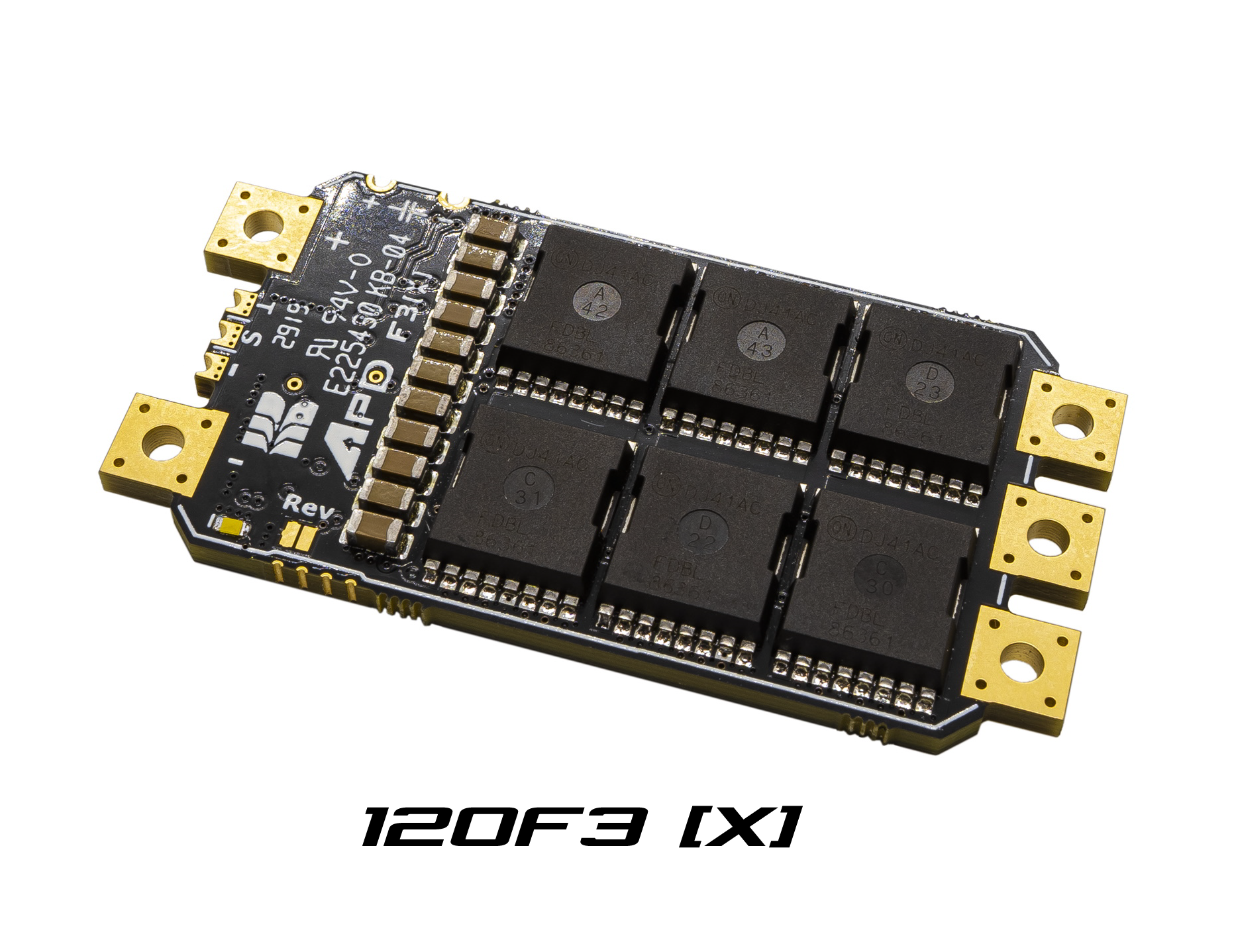

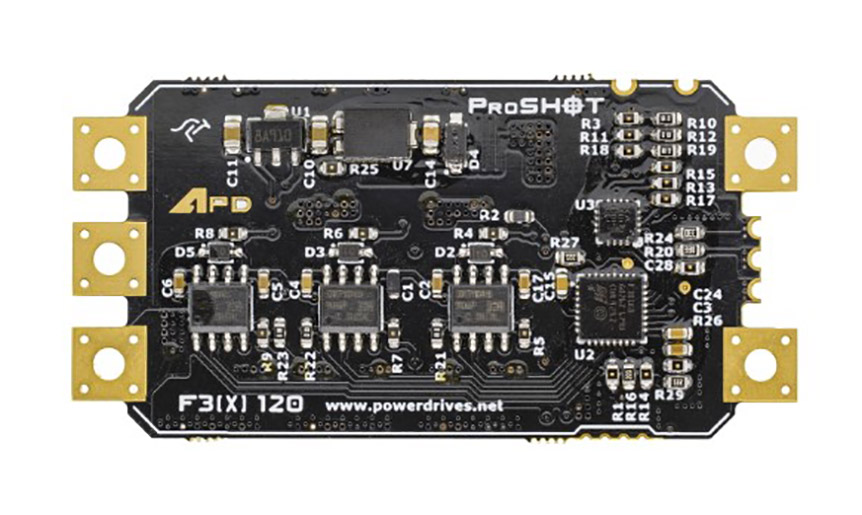

APD 120F3x ESC V2
$149.00
| Peak Power Rating (kW) | 9 | Weight (No cables) (g) | 20 | |
| Continuous Current (A) | 120 | Dimensions (mm) | 59 × 29 × 14 | |
| Continuous Rating Duration (s) | 180 | ProShot Frequency Range (Auto Detection) (kBit/Sec) | Up to 500Hz | |
| Burst Current (A) | 200 | DShot Frequency Range (Auto Detection) (kBit/Sec) | 1000μs to 2000μs | |
| Burst Rating Duration (s) | 5 | Auto-detect Multishot | YES | |
| Max Voltage (V) | 50 | Auto PWM-Freq | YES | |
| Max No. of LiPo Cells | 12S | Regenerative Braking | YES | |
| Min Voltage (V) | 15 | Max Regen Current (A) | 12 (10% max set current) | |
| Min No. of LiPo Cells | 4 | Max Regen Voltage | 110% Power on Voltage | |
| Max ERPM | 750,000 | Auto Timing Advance | YES | |
| Resistance (Ohms) | .0011 | Stall Protection | YES | |
| Input Resolution | 10 bit (0.1%) | Configurator Tool | NO | |
| Max Operating Temperature (⁰C) (50% current limiter start point) | 115 | Data Logging (Black Box) | NO | |
| Recommended Airflow to achieve max power ratings (m/s) | 10 | Bi-Directional Control | NO | |
| Decoupling Capacitor | 1 X 330μF 50V | Micro USB Firmware Flashing | NO |
March 2023.
The improved F Series 120F3[X] ESCs build upon APD’s trusted ARM 32-bit architecture. The V2 release introduces a number of requested features into the product range, including configuration options, bi-directional DShot, and UART overvoltage protection. The 120F3[X]v2 ESCs are drop-in replaceable to preceding 120F3[X] units.
Existing features include PWM-frequency dithering and Active Phase-Current Demagnetisation, allowing for smooth control with virtually all powertrain combinations with peak power outputs of up to 9 kW.
New Feature Set (V2)
• Configuration of drive parameters, signal types and fault handling
• Bi-Directional DShot for RPM Filtering support
• On board bootloader
• Passthrough firmware updating and configuration
• Additional Telemetry types: PWM Telemetry and RPM Output
• High-speed telemetry rates when operating DShot and ProShot
• Reversible operation support (full forwards to full reverse)
• Dynamic signal quality checks across supported input protocols
• Hardware protection for UART programming pins
Existing Feature Set
• Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability
• Proprietary firmware designed in Australia
• Plug and play firmware
• Up to 12S (50.4 V) capable
• Up to 120 A continuous* output current
• 200 A Burst current
• True 10-bit resolution
• Virtually no setup time, with a simple motor reverse solder tab
• Auto-detect ProShot or DShot
• ProShot1000 capable (1Mbs/s)
• DShot150 to DShot600 capable (0.15-0.6Mbs/s)
• Up to 750,000 eRPM (protocol dependant)
• Motor agnostic
• Auto PWM output frequency
• Auto timing advance
• Telemetry output
• Automatic current limiting and over-temperature protection
• LED indication
• Digital commands over ProShot (including anti-turtle mode)
• Digital commands over DShot
• Bare-PCB design to allow maximum integration within the end setup
• 8-Layer PCB to ensure minimal track resistance
* Continuous current ratings are at a 100% throttle duty cycle. Continuous rating is defined as max sustained current at 100% throttle for 60 seconds with 33 m/s of airflow.
Products marked "Not Suggested for New Designs" are scheduled to be superceded by Hargrave Technologies. These products will remain in production indefinitely for customers with existing applications.
Peak power ratings defined at 100% throttle, where bus current = phase current. Requires proper sizing of motor to load.
(*) Continuous amps defined as amperage sustainable for 180 seconds with adequate cooling to keep ESC at or below 115C
(**) Burst amps defined as amperage sustainable without damage to controller for a period of 5 (five) seconds. Burst should not be encountered again until ESC has returned to normal temperature
(***) Weight refers solely to the circuit board and enclosure, if any. Weight measured without any wires or connectors.
Specifications subject to change without notice.
